Item
Water Heater Vent Package
Application
Upgrade Water Heaters from Electric to Gas or in New Construction Where No Chimney Exists
Function

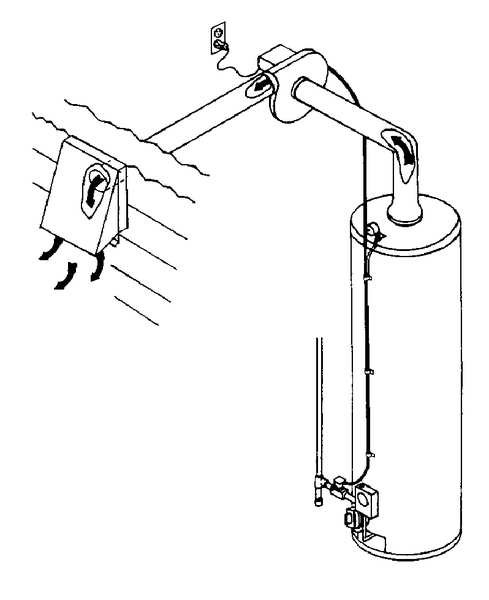

Allows Venting Up to 75 Feet away from a Side Wall
Includes
24V Control Cables, Factory Pre-Wired Electrical Box, Gas Pressure Switch, Linear Limit Spillage Switch, Post Purge Relay/Timer, Thermocouple Junction Adapter, Vent Hood
Characteristics
Compatible with any Gas Water Heater Up to 60,000 BTUs
Features
Factory-Wired, Post-Purge Timer Keeps Power Venter Operating After Burner Cycle to Purge System of Residual Gases, System Controls Shut Off Heater if Vent System Fails
Product Type
Water Heater Vent Package
Overall Dimensions - L x W x H
10.5 in x 7.5 in x 10.5 in
Includes Mounting Hardware
Yes
For BTU Range
Up to 60,000 BTU
Compatible Manufacturer Part Number
8504140, 8505032
Venting Product Type
Power Vent Package
Mounting Orientation
Horizontal
Country of Origin (subject to change)
United States
