Item - Relay

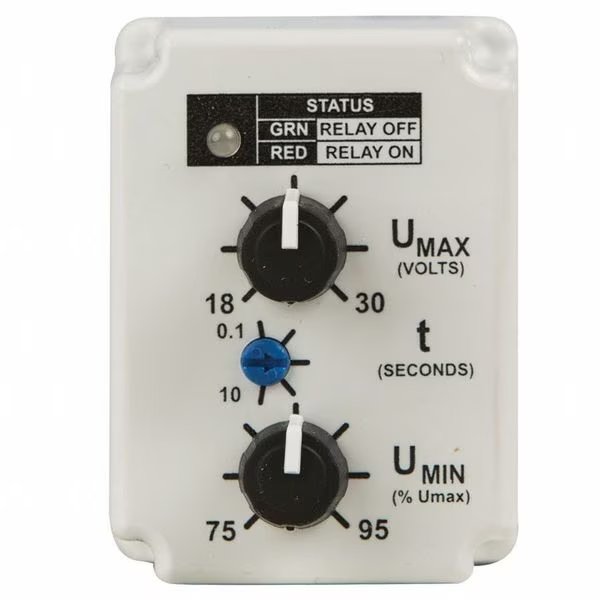

Voltage Sensing Relay
Input or Control Voltage
24V DC
AC Contact Rating - Relay
10A @ 240V
DC Contact Rating - Relay
7A @ 30V
Base Type - Plug In Relay
Octal
Pick Up Range
18 to 30V DC
Item
Voltage Sensing Relay
Overall Height - Relay
4.0 in
Body Height - Relay
3.5 in
Contact Amp Rating (Resistive)
10
Socket
5X852, 1EGP3, 1EGP5
Contact Rating (DC)
7 A @ 30 V
Minimum Operating Temperature
-18 Degrees F
Mechanical Operating Durability
10,000,000
Standards
CE Certified; UL Listed
Contact Rating (AC)
10 A @ 240 V
Maximum Operating Temperature
149 Degrees F
Monitored Parameters
Overvoltage, Undervoltage
Electrical Operating Durability
100,000
Enclosure Style
Plug-in case utilizing industry-standard 8 pin octal sockets, Plug-in
Voltage Tolerance
+50%/-50% of nominal AC voltage (50-60Hz,+5%) or DC voltage; No separate input voltage is required since unit is powered by monitored voltage.
Drop Out Voltage Setting
Adjustable % of Pick-up Voltage Setting
Drop-out (Umin)
Adjustable from 75-95% of the Pick-up setting
Life
Mechanical: 10,000,000 operations; Full Load: 100,000 operations
Temperature
-28°to 65°C (-18°to 149°F)
Response Times
Pick-up: 500 ms; Drop-out (t): Adjustable 0.1-10 Seconds
Load (Burden)
Less than 2 VA (12-120V); 30VA (240V u0026 480V)
Output Contacts
10A @ 240V AC, 7A @ 30V DC, 1/4HP @ 120/240V AC, C300
Configuration / Contact Rating
DPDT (12-120V relays) and SPDT (240-480V relays). 10A @ 240VAC, 7A @30V DC, 1/4HP @ 120/240V AC, C300
Indicator LED
Red when Relay is energized; Green when Relay is Off
Function
Over/Undervoltage Relay w/ adjustable time delay on drop-out
Pick-up (Umax)
Adjustable across full range as shown on the product nameplate
Country of Origin (subject to change)
United States
