VA Rating - UPS Systems
700.0 VA
Backup Time (Half/Full Load)
12 min 4 sec/3 min 23 sec
Outlet Type
(3) Surge; (3) UPS/Surge
Includes
USB Cable, User Manual
Green Certification or Other Recognition
ENERGY STAR
NEMA Plug Configuration
5-15P
Fax/Modem Line Protection
Yes
Standards
BSMI, RoHS Compliant
Special Features
Audible Alarms, Automatic Self Test, Cold-Start Capable, Predictive Failure Notification, Resettable Circuit Breaker, Serial Connectivity, Single Switched Outlet Group
NEMA Receptacle Configuration
5-15R
Green Environmental Attribute
Product is Rechargeable
Automatic Volts Regulation
No
Input Connection
NEMA 5-15P Plug
Input Frequency
50/60 Hz +/- 3 Hz auto-sensing
Storage Relative Humidity
0-95 %
Switching Current Capacity
15 A
Product Certifications
NOM || TUV || ENERGY STAR V2.0 (USA)
Data Line Protection
coaxial cable for CATV/SATV/modem/audio-video
Ambient Air Temperature For Storage
-15-45°C
Online Thermal Dissipation
48.5 Btu/h
Storage Altitude
0-50000 ft
Provided Equipment
User Manual || USB cable
Operating Altitude
0...10000 ft
Efficiency At Full Load
88...143 V
Ambient Air Temperature For Operation
0-40°C
Waveform Type
Stepped Sine Wave
Certifications u0026 Standards
FCC Part 15 Class B, FCC Part 68, NOM, UL 1778, CE, C-Tick, UL, FCC
Backup/Run Time (Full Load)
3 Minute
Load Capacity
700 VA/450 W
Package Contents
Back-UPS RS 700 VA Tower UPS , USB cable, User manual
Backup/Run Time (Half Load)
12 Minute
Number of Battery u0026 Surge Outlets
6
Typical Battery Recharge Time
12 Hour
Efficiency
View Efficiency Graph; action_new_window
Battery Graph Comments
This graph is based on actual measured runtime data. All measurements were taken with new, fully charged batteries and a balanced resistive load (PF = 1.0). Actual runtimes may vary from the values of this graph. Actual runtimes are dependent on several variables including battery age, battery charge level, environmental conditions and characteristics of the connected load.
Filtering
Full time multi-pole noise filtering :5% of IEEE surge let-through : zero clamping response time: in
Maximum Input Current Per Phase
12 A
Equipment Protection Policy
Lifetime : $150000

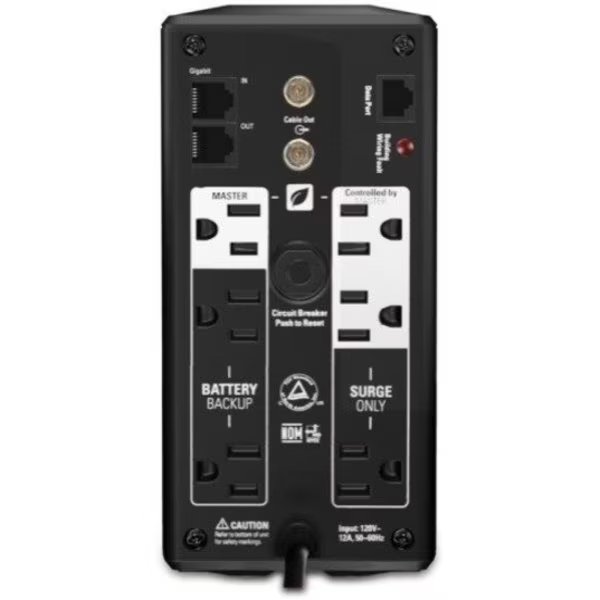

Output Connection Type
3 NEMA 5-15R; 3 NEMA 5-15R surge
Typical Recharge Time
12 h
Output Frequency
50/60 Hz +/- 3 Hz sync to mains
Battery Charge Power
7 W rated
Input Connection Type
NEMA
Country of Origin (subject to change)
Philippines
