VA Rating - UPS Systems
1.5 kVA
Output Voltage
110/115/120V AC
Backup Time (Half/Full Load)
11.5 min/4.5 min

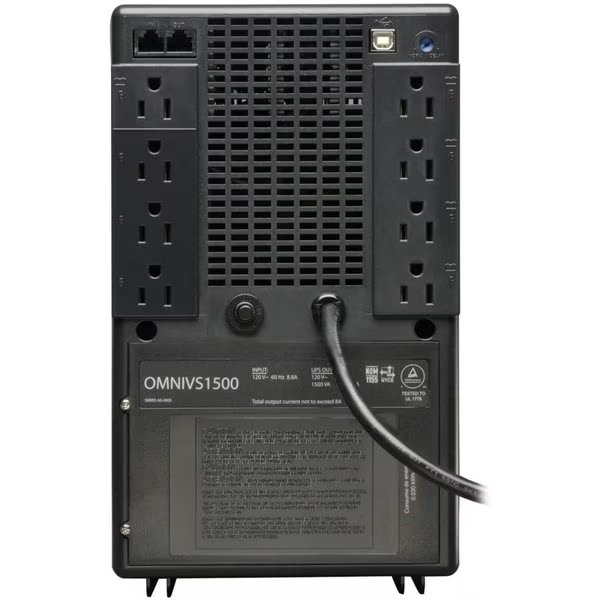

Outlet Type
(3) Surge; (5) UPS/Surge
NEMA Receptacle Configuration
(8) 5-15R
Special Features
Hot Swappable Batteries
Automatic Volts Regulation
Yes
NEMA Plug Configuration
5-15P
Green Environmental Attribute
Product Contributes To Reducing Energy Consumption
Fax/Modem Line Protection
Yes
Includes
USB Cable and Phone Cable
Green Certification or Other Recognition
Tested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), NOM (Mexico), Class A (emissions), FCC Part 68 / Industry Canada (Telecommunications)
Capacity - Batteries
1500 VA/940 W
Input Connection
NEMA 5-15P Plug
Battery Type
Valve Regulated Lead Acid (VRLA)
Housing Material
Polycarbonate
High Availability UPS Features
Hot swappable batteries
AC Mode BTU / Hr. (Full Load)
109
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
Rated input current (Maximum Load)
12A
Communications Cable
USB interface cable included
EMI / RFI AC Noise Suppression
Yes
UPS AC Suppression Response Time
Instantaneous
Input Frequency
60Hz +/-5%
Battery Replacement Description
Hot-swappable, user replaceable batteries
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Communications Interface
USB (HID enabled)
Audible Alarm
Audible alarm indicates power-failure and low-battery conditions
Output Watt Capacity (Watts)
940
Output Volt Amp Capacity (VA)
1500
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Full Load Runtime (min.)
4.5 min. (940w)
UPS Certifications
Tested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category B (EMI)
Frequency Compatibility
60 Hz
Low Voltage Transfer to Battery Power (Setpoint)
75
Hot-Swap PDU options
PDUB15 (2U / 8 5-15R outlets)
Half Load Runtime (min.)
11.5 min. (470w)
Overvoltage Correction
Input voltages between 128 and 147 are reduced by 12%
AC Mode Efficiency Rating (100% Load)
0.97
Output Voltage Regulation (Line Mode)
-18%, +8%
Alarm Cancel Operation
Power-fail alarm can be silenced using alarm-cancel switch; once silenced, alarm will re-sound to indicate low-battery status
Severe Undervoltage Correction
Input voltages between 75 and 92 are boosted by 30%
Installation Form Factors Supported with Optional Accessories
Wallmount (UPSWM - tower mounting kit)
Recommended Electrical Service
15A 120V
Undervoltage Correction
Input voltages between 93 and 107 are boosted by 14%
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in USB port, download PowerAlert Local software at http://www.tripplite.com/poweralert
LED Indicators
5 LEDs indicate line power, battery power, overload, voltage regulation and battery low/replace status
Battery Mode BTU / Hr. (Full Load)
523
Internal UPS Replacement Battery Cartridge
RBC24-SLT
Installation Form Factors Supported with Included Accessories
Tower
Battery Access
Battery access door
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
DC System Voltage (VDC)
24
Output kVA Capacity (kVA)
1.5
UPS AC Suppression Joule Rating
510
Battery Recharge Rate (Included Batteries)
Less than 4 hours from 10% to 90%
UPS Power Module Dimensions (hwd, in.)
11.8 x 7.2 x 7.5
UPS Dataline Suppression
1 line TEL/DSL (1 in / 1 out); 10/100Base T Ethernet
Output AC Waveform (Battery Mode)
PWM sine wave
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 75 to 147
Nominal Input Voltage(s) Supported
120V AC
Individually Controllable Load Banks
No
Primary UPS Height (mm)
300
UPS Input Cord Length (ft.)
6
Primary UPS Depth (mm)
191
Relative Humidity
0 to 95%, non-condensing
Switches
2 Switches control off/on power status and alarm-cancel/self-test operation
Network UPS Tools Compatibility
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at NUT UPS Compatibility Lis
High Voltage Transfer to Battery Power (Setpoint)
147
Output Voltage Regulation (Battery Mode)
+/- 5%
Dataline Protection
RJ-45, RJ-11
Typical Battery Recharge Time
4 Hour
Certifications u0026 Standards
Tested to UL1778 (USA), CSA C22.2 No. 107.3 (Canada), NOM (Mexico), Class A (emissions), FCC Part 68 / Industry Canada (Telecommunications)
Additional Information
Switches: Includes 2 front panel switches one main on/off power switch and one dual function
Backup/Run Time (Half Load)
14 Minute
Package Contents

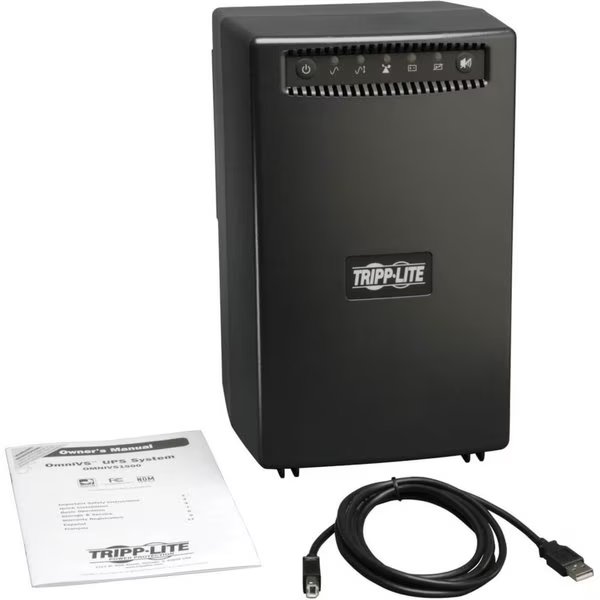

Omni VS 1500VA Tower UPS, USB and telephone cable, User manual with warranty information
Load Capacity
1500 VA/940 W
Output Capacity (Watts)
940
Product Compliance
FCC Part 15 Class B (USA)
Package Includes
OMNIVS1500 Line-Interactive UPS;USB and telephone cable;Owner's manual with warranty information
Product Certifications
CSA (Canada); NOM (Mexico); UL 1778
UPS Applications
Home/Office Desktop; High-End Desktop/Small Network; Retail/Point of Sale; Hospitality
Battery Mode Heat Dissipation (BTU/Hr) @ Full Load
523
Country of Origin (subject to change)
China
