Welding Processes
Stick Welding (SMAW), TIG Welding (GTAW)
Input Voltage
120 V, 208 V, 230 V, 460 V
Features
Exceptional Arc Response and Stability, Highly Customizable TIG Machine, Portable, Lightweight, and Easy to Transport
Remote Connection Type
6-Pin (Lincoln)
Stick Welding Output @ Duty Cycle
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Includes
Power Source Only
Max. Amperage Range (TIG)
150 A - 300 A
Input Voltage (Nominal)
120V, 208V, 240V, 480V
Welder Kit Type
Power Source Only
TIG Welding Minimum Output Current
2 A
TIG Welding Maximum Output Current
150 A
Remote Control
Remote Control Not Included
Rated Output at Duty Cycle (TIG)
110 A @ 100%, 125 A @ 60%, 150 A @ 35%, 160 A @ 100%, 190 A @ 60%, 230 A @ 35%
TIG Welding Output @ Duty Cycle
110 A @ 14.4 V, 100% (Single-Phase, 120 V), 125 A @ 15 V, 60% (Single-Phase, 120 V), 150 A @ 16 V, 35% (Single-Phase, 120 V), 160 A @ 16.4 V, 100% (Single/Three-Phase, 208-480 V), 190 A @ 17.6 V, 60% (Single/Three-Phase, 208-480 V), 230 A @ 19.2 V, 35% (Single/Three-Phase, 208-480 V)
Application
Automotive, Brewery, Distillery, General Fabrication, Maintenance and Repair, Marine Applications, Marine Fabrication and Repair, Pharmaceutical Equipment, Repair Welding, Shipbuilding
Stick Welding Maximum Output Current
230 A
TIG Arc Start Feature
High Frequency Start, Lift Arc Start
Max. Input Current
34 A @ 120VAC
Pulse Frequency
0.1 to 2000 pulses/second
Kit Includes
Power Source Only
Stick Welding Minimum Output Current
2 A
Process
Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model

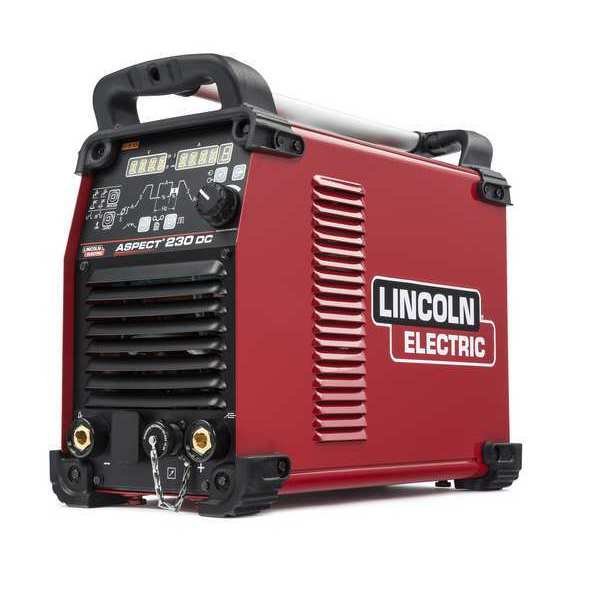

LINCOLN ELECTRIC - K4346-1
Country of Origin (subject to change)
Poland
