VA Rating - UPS Systems
3.0 kVA
Output Voltage
100/110/120/125V AC
Backup Time (Half/Full Load)
9 min/3 min
Special Features
Advanced AVR Corrects Brownouts and Overvoltages, Pure Sine Wave Output
Transfer Time
1 msec from DC to AC, 5 msec from AC to DC
Green Certification or Other Recognition
ENERGY STAR

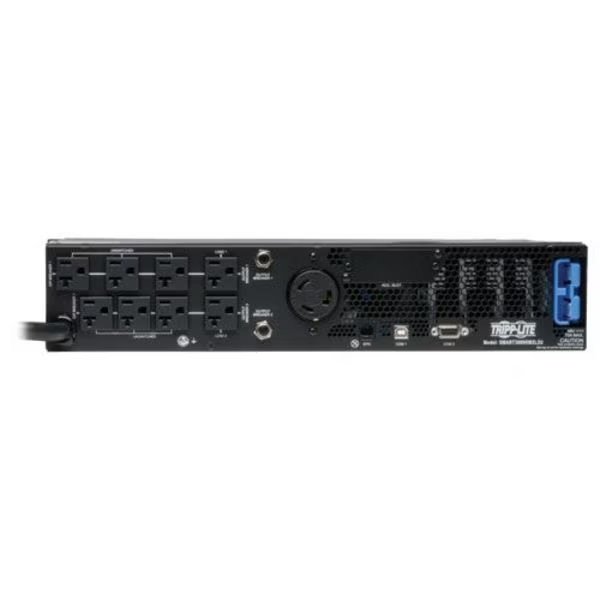

NEMA Receptacle Configuration
(8) 5-15/20R; (1) L5-30R
Fax/Modem Line Protection
No
Standards
CSA, ENERGY STAR Qualified, FCC Part 15 Category A (EMI), NOM, UL 1778
Ports
DB9 Serial, SNMP/Web Slot, USB (HID Enabled)
Automatic Volts Regulation
Yes

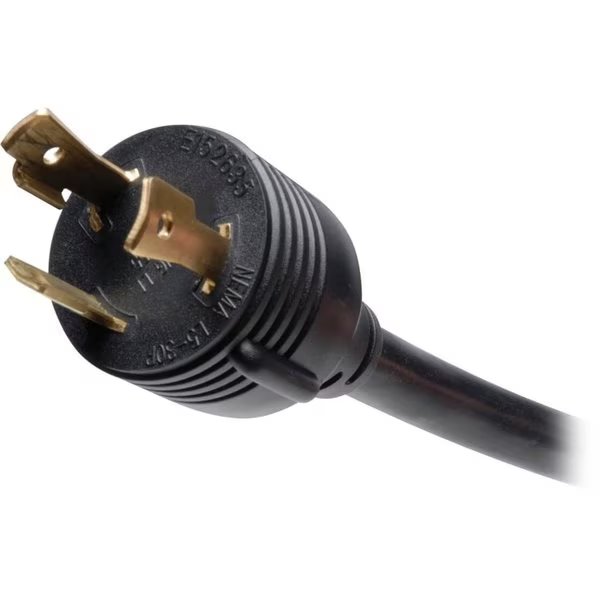

NEMA Plug Configuration
L5-30P

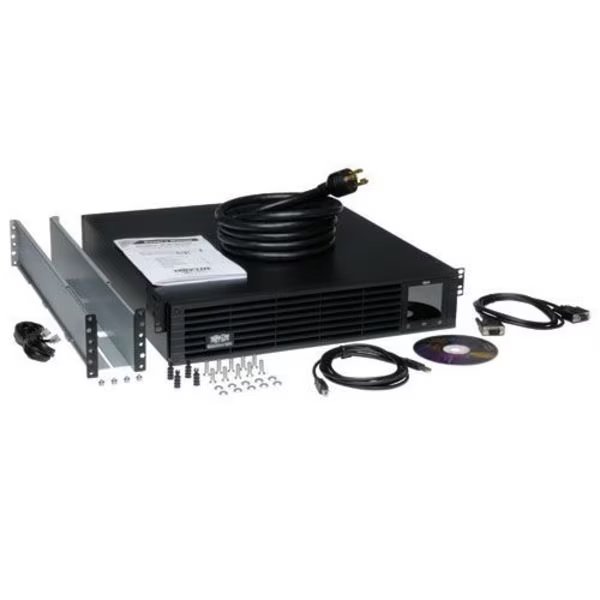

Includes
4-Post Rack Mount Installation Kit, PowerAlert Software with USB, Serial and EPO Cables
Input Connection
10 ft Cord with NEMA L5-30P Plug
Battery Type
Valve Regulated Lead Acid (VRLA)
Alarm Cancel Operation
Power-fail alarm can be temporarily silenced using alarm-cancel switch; silent mode alarm configuration option available
Operating Temperature Range
+32 to +104 degrees Fahrenheit / 0 to +40 degrees Celsius
Relative Humidity
0 to 95%, non-condensing
Battery Recharge Rate (Included Batteries)
Less than 4.5 hours from 10% to 90%
Network Management Cards
SNMPWEBCARD ; TLNETCARD ; WEBCARDLX ; RELAYIOCARD

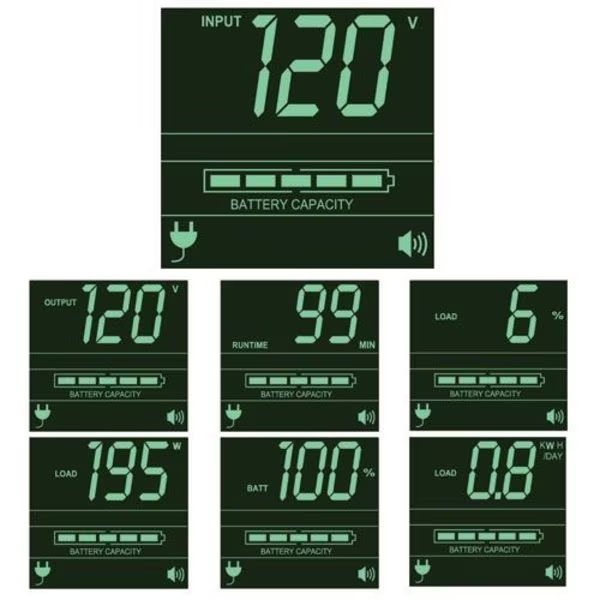

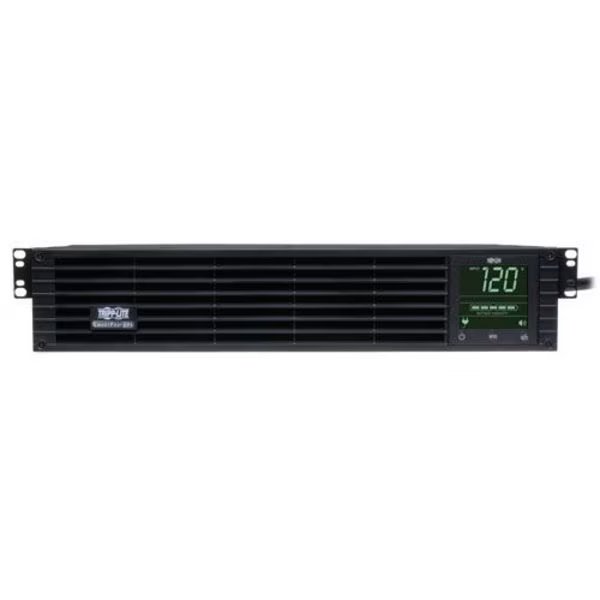

Front Panel LCD Display
Front panel LCD information and configuration screen offers detailed UPS and site power status and operating data, plus configuration of voltage, operating mode, alarm function and a variety of additional options (see manual for detailed LCD configuration and monitoring options)
Output Voltage Regulation (Battery Mode)
+/- 5%
Primary UPS Height (mm)
87
AC Mode Efficiency Rating (100% Load)
0.98
Load Management Receptacles
Two switchable single-outlet load banks
Individually Controllable Load Banks
Yes
Output kW Capacity (kW)
2.25
UPS Input Cord Length (ft.)
10
Expandable Battery Runtime
Extended runtime supported via optional external battery packs
Voltage Regulation Description
Automatic voltage regulation (AVR) maintains line power operation with an input voltage range of 83 to 145
Internal UPS Replacement Battery Cartridge
RBC94-2U
Installation Form Factors Supported with Optional Accessories
2 post rackmount ( 2POSTRMKITWM ); 2-4 post front rail rackmount ( UPSHDEARKIT ); 4 post rackmount short-depth ( 4POSTRAILKITWM ); Tower ( 2-9USTAND ); Wallmount ( 2POSTRMKITWM )
Low Voltage Transfer to Battery Power (Setpoint)
83
Storage Temperature Range
+5 to +122 degrees Fahrenheit / -15 to +50 degrees Celsius
High Availability UPS Features
Hot swappable batteries
Battery Access
Front panel battery access door
PowerAlert Software
For local monitoring via the UPSâ„¢s built-in communication ports, download PowerAlert Local software at http://www.tripplite.com/poweralert
UPS Certifications
Meets FCC Part 15 Category A (EMI); Tested to CSA (Canada); Tested to NOM (Mexico); Tested to UL1778 (USA)
Included Mounting Accessory Description
Included 4POSTRAILKIT mounting bracket enables installation in 4 post racks from 20.5 to 36 inches (521 to 914mm)
Communications Interface
USB (HID enabled); DB9 Serial; Slot for SNMP/Web interface
Overvoltage Correction
Input voltages between 127 and 145 are reduced by 12%
UPS Certification Details
SAFETY STANDARD (U.S.) - UL1778:2014 (5th Ed) R10.17; SAFETY STANDARD (CANADA) - CAN/CSA-C22.2 No. 107.3-14 (3rd Ed) + GI1 / FCC/ICES COMPLIANT - CLASS A
Recommended Electrical Service
30A 120V
UPS Power Module Dimensions (hwd, in.)
3.43 x 17.32 x 19.46
Installation Form Factors Supported with Included Accessories
4 post 19 inch rackmount
Nominal Output Voltage(s) Supported
110V; 115V; 120V
Primary UPS Depth (mm)
494
AC Mode BTU / Hr. (Full Load)
189
Network UPS Tools Compatibility
NUT compatible. See the full list of Tripp Lite NUT compatible UPS systems at http://www.networkupstools.org/stable-hcl.html?manufacturer=Tripp Lite
Output Voltage Regulation (Line Mode)
-14%, +6%
External Battery Pack Compatibility
BP48V24-2U (limit 1); BP48V60RT-3U (multi-pack compatible); BP48V27-2US (multi-pack compatible)
Audible Noise
45 dBA maximum, front side 1m
Nominal Input Voltage(s) Supported
120V AC
Primary Form Factor
Rackmount
Output AC Waveform (Battery Mode)
Pure Sine wave
Output kVA Capacity (kVA)
3
Frequency Compatibility
60 Hz
UPS AC Suppression Response Time
Instantaneous
Network Monitoring Port Description
Supports detailed monitoring of UPS and site power conditions
Full Load Runtime (min.)
3.5 min. (2250w)
Audible Alarm
Audible alarm indicates UPS startup, power-failure, low-battery, overload, UPS fault and remote shutdown conditions
Severe Undervoltage Correction
Input voltages between 83 and 95 are boosted by 24%
Output Capacity Details
Output is reduced to 1600 watts maximum when used with external battery packs
Half Load Runtime (min.)
10 min. (1125w)
WatchDog Compatibility
Supports Watchdog application, OS and hard-reboot restart options for remote applications
Battery Mode BTU / Hr. (Full Load)
1356
DC System Voltage (VDC)
48
High Voltage Transfer to Battery Power (Setpoint)
145
Communications Cable
USB and DB9 cabling included
EMI / RFI AC Noise Suppression
Yes
Rated input current (Maximum Load)
24A
Grounding Lug
Includes back panel grounding lug
Battery Replacement Description
Hot-swappable, user replaceable batteries
Undervoltage Correction
Input voltages between 108 and 96 are boosted by 12%
Output Circuit Breakers
Two 20A output breakers protect 4 5-15/20R outlets each
Minimum Required Rack Depth without External Battery Pack (in.)
24.46
UPS AC Suppression Joule Rating
570
Output Volt Amp Capacity (VA)
3000
Output Watt Capacity (Watts)
2250
Minimum Required Rack Depth with External Battery Pack (in.)
26.46
Cold Start (Startup in Battery Mode During a Power Failure)
Cold-start operation supported
Switches
3 pushbutton switches control OFF / ON power status, MODE selection and MUTE / ENTER control functions
Software Included
PowerAlert Software
Protection Type
Under Voltage, Over Voltage
Maximum Operating Temperature
104°F (40°C)
Alarm
Low Battery, Overload, On Battery
Status Indicators
5 Front Panel Leds:Green Power Led, Green Voltage Correction Led, 3 Color Battery Charge Led, 3 Color Output Load Led, Red Battery Warning Led
Load Capacity
3000 VA/3000 W
Network Management
SNMP Manageable
Certifications u0026 Standards
UL1778 (USA), CSA (Canada), NOM (Mexico), FCC Part 15 Category A (EMI)
Typical Battery Recharge Time
4.50 Hour
Package Contents
SMART3000RM2U UPS System, Poweralert Software With Usb, Serial u0026 Epo Cabling, 4 x Post Rackmount Installation Kit, Instruction Manual
Storage Elevation (ft.)
0-32,808
Nominal Input Voltage Description
80V-151V; adjustable to 70-153V
LED Indicators
UPS Mode On (Solid Green); Battery Mode (Solid Orange)/ Battery Below Warning Level (Flashing Orange); Fault/Alarm (Solid Red).
Product Certifications
CAN/CSA-C22.2 No. 107.3 (Canada); ICES (Canada); NOM (Mexico); UL 1778
UPS Applications
High-End Desktop/Small Network; Large Network
Product Compliance
ENERGY STAR Qualified; FCC Part 15 Class A (USA)
Minimum Required Rack Depth (inches)
27
Package Includes
3000VA 3000W 120V Line-Interactive UPS;USB cable;DB9 cable;Rack-mounting hardware;Tower support stands;Safety instructions;Advanced User Guide
Output Capacity (Watts)
3000
Grounding Details
Rear panel grounding lug
Unit Dimensions (hwd / in.)
3.400 x 17.200 x 23.700
Operating Elevation (ft.)
0-10,000
Battery Mode Heat Dissipation (BTU/Hr) @ Full Load
944
Country of Origin (subject to change)
China
