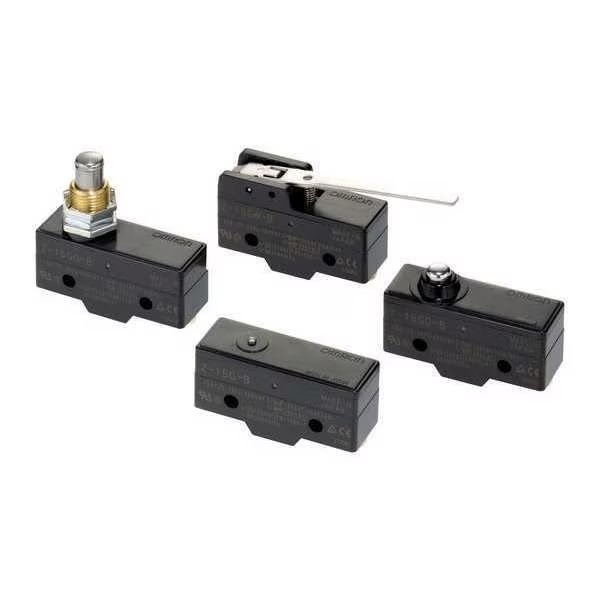

Actuator Type - Snap Action Switch
Pin, Plunger
AC Contact Rating - Snap Action Switch
20 A @ 250 V
DC Contact Rating - Snap Action Switch
20 A @ 14 V
Contact Form- Switches
SPDT
Lever Actuator Length - Snap Action Switch
Not Applicable
Height - Snap Action Switch
1.5 in
Width - Snap Action Switch
2 in
Depth - Snap Action Switch
0.8 in
Electrical Connection - Snap Action Switch
Screw
Includes
Rated up to Current 20 A, M4 Screw Terminal
Housing Material
Silver; Metal
Mounting Dimension - Snap Action Switch
1.00 in Centers
Operating Temp. Range
-25 Degrees to 80 Degrees C
DC Contact Rating
0.03 A @ 250 V, 0.05 A @ 125 V, 0.25 A @ 250 V, 0.5 A @ 125 V, 1.5 A @ 14 V, 1.5 A @ 30 V, 1.5 A @ 8 V, 12.5 A @ 14 V, 12.5 A @ 8 V, 15 A @ 14 V, 20 A @ 14 V, 20 A @ 8 V, 3 A @ 14 V, 3 A @ 30 V, 3 A @ 8 V, 5 A @ 30 V, 6 A @ 30 V
Watertight - Snap Action Switch
No
Operating Force - Maximum
6.13 N
Lever Actuator Length
Not Applicable
Mounting Hole Diameter
4 3/16 in
Center Mounting Hole Distance
0.1 in
Electrical Connection
Screw
Roller Width
Not Applicable
Actuator Style
Pin Plunger
Differential Travel - Maximum
0.0079 in
Roller Material
Not Applicable
Operating Force - Minimum
3.92 N
Roller Diameter
Not Applicable
Roller Position
Not Applicable
Resistance Properties
Insulation Resistant
Operating Temperature - Minimum
-13 Degrees F
Differential Travel - Minimum
Not Applicable
Operating Temperature - Maximum
176 Degrees F
Roller Adjustability
Not Applicable
Country of Origin (subject to change)
Japan
