Standards
CSA Certified LR111846, UL E10757
Material
Copper Free Aluminum with Electro Statically Applied Epoxy, Powder Finish
Item

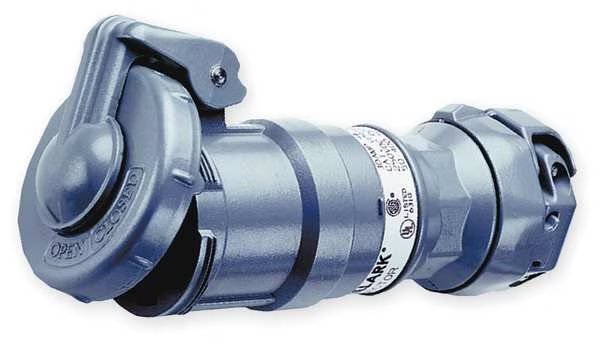

Pin and Sleeve Connector
Features
Increased Safety Type Box Terminals with Gripper Ribs Securely Clamp Conductors, Octagonal Body Style, Suitable for Type P Marine Cable
For Minimum Cable Diameter
0.65 in
NEMA Enclosure Rating
3, 4, 4X
For Location
Indoor, Outdoor
Compatible with Series
Versamate(R)
For Maximum Cable Diameter
1.5 in
Wire Connection Type
Screw Terminals
Voltage Rating
250V DC, 600V AC
Housing Material
Copper-Free Aluminum
Cap Type
Flip-Up and Screw-On Cap
Connection Orientation
Straight
Hazardous Location Specification
Class I, Div 1 and 2, Group B, C, D, Class II, Div 1 and 2, Group F, G, Class III, Div 1 and 2
Resistance Properties
Corrosion Resistant
Housing Material Finish
Baked Powder Epoxy Coated; Polyester Finish
For Environment
Cold, Corrosive, Hazardous Location, Washdown, Wet
Country of Origin (subject to change)
United States
