Input Voltage
380V AC, 460V AC, 575V AC
Kit Includes
Power Source Only
Features
Compatible with CrossLinc feeders and remotes, CrossLinc enabled for full control of the power source from hundreds of feet away, Flexible, multi-process power source for all your welding needs, Pulse capabilities when paired with an ArcLink feeder
Maximum Wire Diameter
1/16 in (Aluminum), 1/16 in (Solid), 5/64 in (Flux-Cored)
Enhanced Process
Pulsed MIG (GMAW-P)
Stick Welding Minimum Output Current
5 A
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Remote Connection Type
12-Pin (Lincoln), 14-Pin (Lincoln), 5-Pin (Lincoln)
For Wire Type
Aluminum, Flux-Cored, Solid
Rated Output at Duty Cycle (Stick)
450 A @ 100%
TIG Arc Start Feature
Lift Arc Start
Max. Wire Diameter
1/16 in (Aluminum), 5/64 in (Flux-Cored)
Stick Welding Output @ Duty Cycle
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
Maximum Wire Feed Speed
1,200 in/min
Max. Amperage Range (TIG)
Greater than 300 A
TIG Welding Output @ Duty Cycle
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
MIG Welding Output @ Duty Cycle
450 A @ 38 V, 100%, 500 A @ 40 V, 60%
Includes

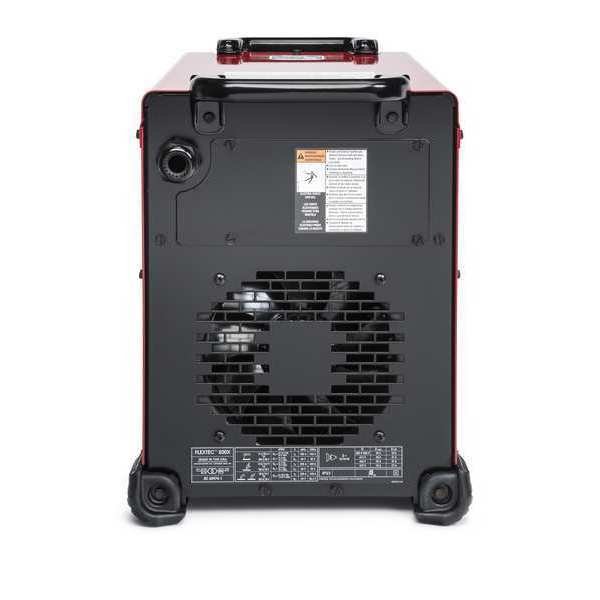

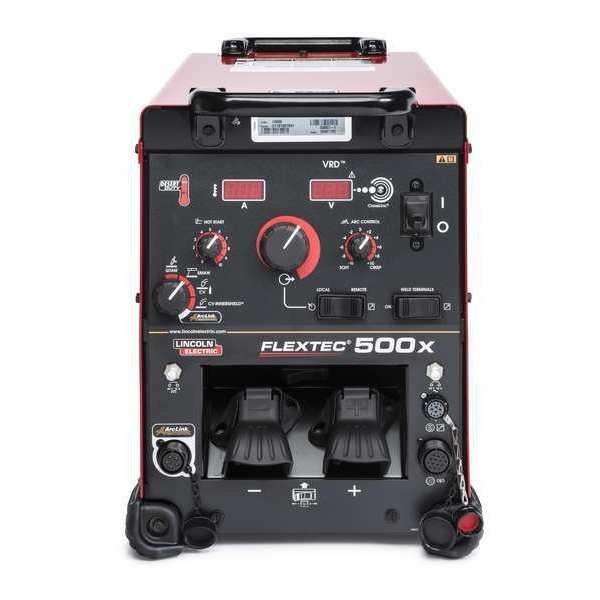

Flextec 500X Power Source
Application
Construction and Field Erection, Cross Country Pipeline, General Fabrication, Heavy Equipment, Heavy Fabrication, Structural Fabrication
MIG Welding Maximum Output Current
500 A
Welder Kit Type
Power Source Only
Max. Amperage Range (Stick)
Greater than 300 A
TIG Welding Minimum Output Current
5 A
TIG Welding Maximum Output Current
500 A
Stick Welding Maximum Output Current
500 A
Input Voltage (Nominal)
400V, 575V
Max. Amperage Range (MIG)
Greater than 300 A
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
brand-mfr model
LINCOLN ELECTRIC - K3607-1
Country of Origin (subject to change)
United States
