Series

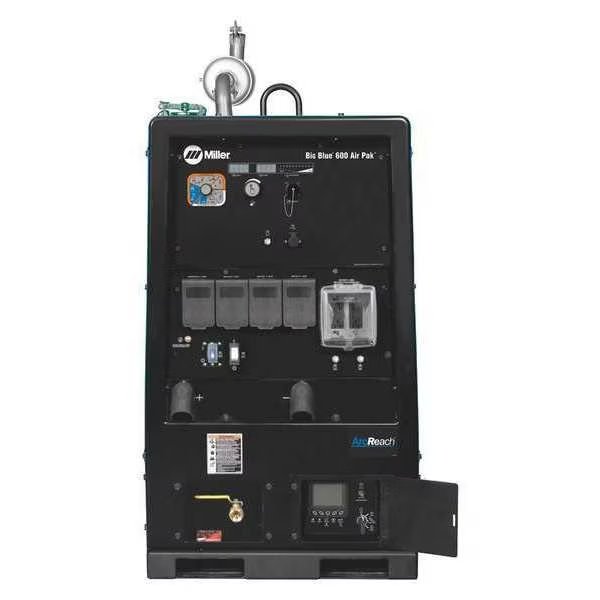

Big Blue 600 Air Pak
Rated Output CC/DC
500A @ 100%, 550A @ 60%, 600A @ 40%
Continuous Auxiliary Power
20,000 W
Peak Auxiliary Power
27,000 W
Includes
Air Cleaner Restriction Indicators, ArcReach Remote Control Technology, FA-1D Lockable Flame Arrestor Fuel Cap, Spark Arrestor
Application
Construction, Infrastructure, Maintenance and Repair
Welding Processes
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Air Compressor Delivery
40 CFM @ 100 psi (Idle), 60 CFM @ 100 psi (Weld)
Stick Welding Maximum Output Current
600 A
Engine Model
Deutz TD2.9 L4
Enhanced Process
Pulsed MIG (GMAW-P), RMD
Rated Output at Duty Cycle (Stick)
500 A @ 100%, 575 A @ 100%, 600 A @ 60%
MIG Welding Output @ Duty Cycle
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
Fuel Tank Capacity Range
Greater than 20 gal
Generator Outlets
20 A 120V GFCI 5-20R (4), 20 A 120V L6-20R (2), 50 A 120/240V 14-50R, 50 A 240V 15-50R
For Material Type
Stainless Steel, Steel
MIG Welding Maximum Output Current
600 A
Coolant Tank Capacity
9 qt
Stick Welding Output @ Duty Cycle
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
Generator Outlet Type
14-50R, 15-50R, 5-20R, L6-20R
Stick Welding Minimum Output Current
20 A
Maximum Pressure - Air Compressor
100 psig
Sound Level
71.3 dB (Idle), 78.9 dB (Weld)
TIG Welding Minimum Output Current
20 A
TIG Welding Output @ Duty Cycle
500 A @ 40 V, 100%, 575 A @ 43 V, 100%, 600 A @ 44 V, 60%
Generator Fuel Type
Diesel
Max. Amperage Range (Stick)
Greater than 300 A
Open Circuit Voltage
92 V DC
Horsepower Range
Greater than 30 hp
TIG Welding Maximum Output Current
600 A
brand-mfr model
MILLER ELECTRIC - 907750001
Process
Air Carbon Arc Cutting and Gouging (CAC-A), Flux-Cored Welding (FCAW), MIG Welding (GMAW), Stick Welding (SMAW), TIG Welding (GTAW)
Welder Model Type
Truck Mount
Country of Origin (subject to change)
United States
