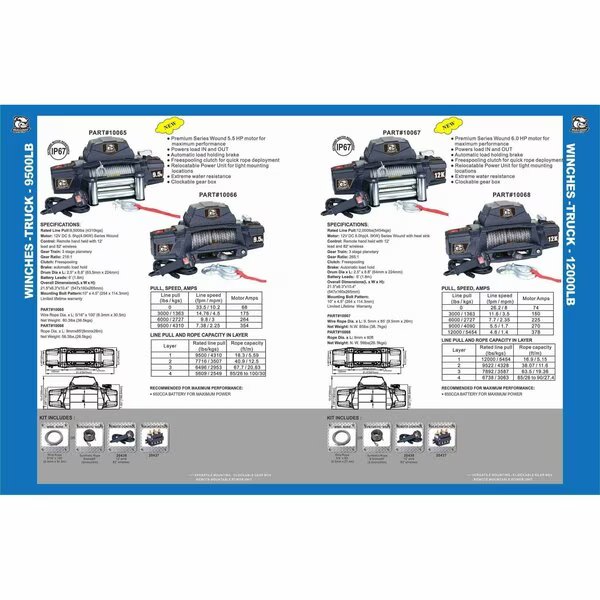

This new series of winches offers updated designs, IP68 water resistance, and wireless controller included!Gear Boxes are clockable in 90 degree increments and power unit can be remote mounted off the winch if needed. •Premium Series Wound 6.0 HP motor for maximum performance •Powers load IN and OUT •Automatic load holding brake •Freespooling clutch for quick rope deployment •Relocatable Power Unit for tight mounting locations •Extreme water resistance •Clockable gear box •SPECIFICATIONS: Rated Line Pull: 12,000lbs(5454kgs) Motor: 12V DC 6.0hp(4. 5KW) Series Wound with heat sink Control: Remote hand held with 12′ lead and 82′ wireless Gear Train: 3 stage planetary Gear Ratio: 265:1 Clutch: Freespooling Brake: Automatic load hold Drum Dia x L: 2.5" x 8.8" (64mm x 224mm) Battery Leads: 6′ (1.8m) Overall Dimensions(L x W x H): 21.5"x6.3"x10.4" (547x160x265mm) Mounting Bolt Pattern: 10" x 4.5" (254 x 114.3mm) Limited Lifetime Warranty
✓ In stock
No reviews yet. Be the first to share your experience!
